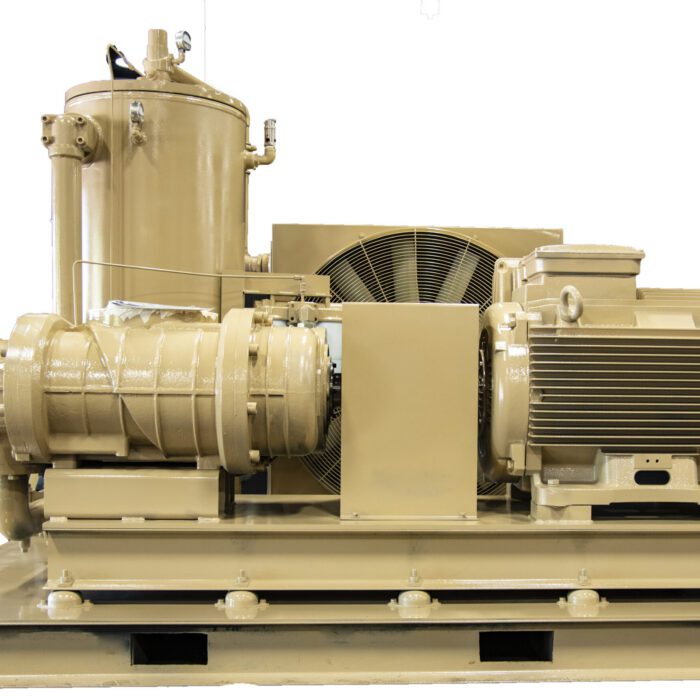

RS100D FS-Curtis 100HP Base Mounted Direct Drive Industrial Rotary Screw Air Compressor

DOES NOT QUALIFY FOR FREE FREIGHT

Model: RS100D
Capacity(cfm): 457cfm @100 psi; 438cfm @ 125 psi; 374cfm @ 150 psi; 337cfm @ 175 psi
Motor: 100HP
Dimensions(inches): 84Lx54Wx60H
Weight: 2950 lbs.

Your Price:
$51,589.00

All Major Credit Cards Accepted
Quantity:
Share Product:
  • Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
  • All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
Weight 2950 lbs
Dimensions 84 × 54 × 60 in

DOES NOT QUALIFY FOR FREE FREIGHT

Built in America, the RSD series offers a robust design with large Direct Drive Airends, premium efficiency electric motors and basic controls for years of operation. The Open design allows for easy maintenance unlike the enclosed units with limited room for service.

Model: RS100D
Capacity(cfm): 457cfm @100 psi; 438cfm @ 125 psi; 374cfm @ 150 psi; 337cfm @ 175 psi
Motor: 100HP
Dimensions(inches): 84Lx54Wx60H
Weight: 2950 lbs.

Rotary Screw Air Compressor Key Features

:

  • LOW POWER CONSUMPTION
  • OPTIMAL COMPONENT SELECTION FOR MAXIMUM PERFORMANCE IN THE TOUGHEST APPLICATIONS
  • SMART CONTROL OPTIONS FOR POWER SAVINGS IN ALL CONDITIONS
  • HIGHLY EFFICIENT AIR ENDS WITH EPACT EFFICIENCY MOTORS FOR LOW POWER CONSUMPTION



Low Cost Service
  • EASY AND OPEN ACCESS TO SERVICE POINTS
  • STANDARD AND LONG LIFE COMPONENTS REQUIRE MINIMUM SERVICE
  • RUGGED AND LEAK FREE DESIGN FOR REDUCED MAINTENANCE COSTS HIGH PERFORMANCE
  • PRECISION ENGINEERED COMPONENT SIZING FOR MAXIMUM PERFORMANCE
  • HIGH EFFICIENCY FILTRATION AND SEPARATION FOR MAXIMUM FLOW AND DURABILITY
  • LARGE AND SLOW SPEED AIR END FOR HIGH PERFORMANCE AND EXTENDED SERVICE LIFE



Standard Features
  • INTAKE FILTER (HEAVY DUTY), HIGH EFFICIENCY AIR END, LOW LOSS DRIVE SYSTEM, EPACT EFFICIENCY ELECTRIC MOTOR, ACROSS THE LINE STARTER (50HP-100HP), Y/D STARTER (125HP-300HP), ON-LINE/OFF-LINE WITH MODULATION, TIMED DUAL CONTROL (50HP), 115V CONTROL VOLTAGE, MULTI-STAGE OIL SEPARATION SYSTEM, HEAVY-DUTY OIL FILTER WITH BY-PASS, OIL LEVEL SIGHT GLASS.
Weight 2950 lbs
Dimensions 84 × 54 × 60 in

DOES NOT QUALIFY FOR FREE FREIGHT

Built in America, the RSD series offers a robust design with large Direct Drive Airends, premium efficiency electric motors and basic controls for years of operation. The Open design allows for easy maintenance unlike the enclosed units with limited room for service.

Model: RS100D
Capacity(cfm): 457cfm @100 psi; 438cfm @ 125 psi; 374cfm @ 150 psi; 337cfm @ 175 psi
Motor: 100HP
Dimensions(inches): 84Lx54Wx60H
Weight: 2950 lbs.

Rotary Screw Air Compressor Key Features

:

  • LOW POWER CONSUMPTION
  • OPTIMAL COMPONENT SELECTION FOR MAXIMUM PERFORMANCE IN THE TOUGHEST APPLICATIONS
  • SMART CONTROL OPTIONS FOR POWER SAVINGS IN ALL CONDITIONS
  • HIGHLY EFFICIENT AIR ENDS WITH EPACT EFFICIENCY MOTORS FOR LOW POWER CONSUMPTION



Low Cost Service
  • EASY AND OPEN ACCESS TO SERVICE POINTS
  • STANDARD AND LONG LIFE COMPONENTS REQUIRE MINIMUM SERVICE
  • RUGGED AND LEAK FREE DESIGN FOR REDUCED MAINTENANCE COSTS HIGH PERFORMANCE
  • PRECISION ENGINEERED COMPONENT SIZING FOR MAXIMUM PERFORMANCE
  • HIGH EFFICIENCY FILTRATION AND SEPARATION FOR MAXIMUM FLOW AND DURABILITY
  • LARGE AND SLOW SPEED AIR END FOR HIGH PERFORMANCE AND EXTENDED SERVICE LIFE



Standard Features
  • INTAKE FILTER (HEAVY DUTY), HIGH EFFICIENCY AIR END, LOW LOSS DRIVE SYSTEM, EPACT EFFICIENCY ELECTRIC MOTOR, ACROSS THE LINE STARTER (50HP-100HP), Y/D STARTER (125HP-300HP), ON-LINE/OFF-LINE WITH MODULATION, TIMED DUAL CONTROL (50HP), 115V CONTROL VOLTAGE, MULTI-STAGE OIL SEPARATION SYSTEM, HEAVY-DUTY OIL FILTER WITH BY-PASS, OIL LEVEL SIGHT GLASS.
