Champion HGR7-LPK 14HP KOHLER Low Profile Gas Powered Base Mounted With Remote Start Option

AS OF 8/1/2023 WE HAVE ONE IN STOCK READY TO SHIP!

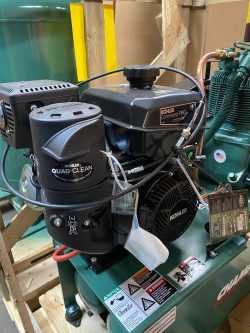

Champion R15B Pump with a Kohler 14hp gas engine mounted on a “low profile” skid with (2) 4 gallon (8-Gallon Total) tanks under the skid. This unit has an extended wiring harness and choke cable for remote starting.

Champion Compressor pumps have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value. Champion compressors are the proven choice!

  • Remote Start Option
  • Kohler Engine with Electric Start
  • USA Made
  • Disc Valves
  • Rated at 23.2 CFM at 175 PSI, 175 PSI Max
  • 1025 Pump RPM
  • 3-Year Limited Warranty
  • 500 lbs
  • L– 41.3’’ W– 22.3’’ H– 37.6



Your Price:
$4,100.00

All Major Credit Cards Accepted
Quantity:
Share Product:
  • Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
  • All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
Weight 500 lbs
Dimensions 48 × 36 × 58 in
Horsepower

13

CFM

23.2 CFM at 175 PSI

PSI Configuration

175

Tank Size

8

Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

1 Multi-finned cylinders
Cooler operating temperatures result in longer life and consistent performance over time.

2 Integral cylinder/head
Gasket-less design eliminates the possibility of blown head gaskets for trouble-free operation.

3 Balanced pistons
Aluminum alloy first-stage piston is weight matched to the cast iron second-stage piston, ensuring proper balance.

4 Piston rings
Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.

5 Lightweight connecting rods
High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision- bored crank pin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.

6 Pressure relief valves
Located in interstage and discharge.

7 Intercoolers
Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.

8 Optimized cooling fan/flywheel
Precision balanced flywheel has fan blades for optimum compressor cooling and life.

9 Reliable, high-flow valves
Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.

10 Oversized main bearings
Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.

11 Balanced crankshafts
Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.

12 Large capacity crankcase
Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.

13 Loadless starting
Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.



Weight 500 lbs
Dimensions 48 × 36 × 58 in
Horsepower

13

CFM

23.2 CFM at 175 PSI

PSI Configuration

175

Tank Size

8

Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

1 Multi-finned cylinders
Cooler operating temperatures result in longer life and consistent performance over time.

2 Integral cylinder/head
Gasket-less design eliminates the possibility of blown head gaskets for trouble-free operation.

3 Balanced pistons
Aluminum alloy first-stage piston is weight matched to the cast iron second-stage piston, ensuring proper balance.

4 Piston rings
Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.

5 Lightweight connecting rods
High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision- bored crank pin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.

6 Pressure relief valves
Located in interstage and discharge.

7 Intercoolers
Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.

8 Optimized cooling fan/flywheel
Precision balanced flywheel has fan blades for optimum compressor cooling and life.

9 Reliable, high-flow valves
Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.

10 Oversized main bearings
Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.

11 Balanced crankshafts
Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.

12 Large capacity crankcase
Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.

13 Loadless starting
Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
