Sullivan-Palatek D185PKR Diesel Powered Portable Air Compressor Unit with Kohler Engine

Categories: ,

Free Freight!

WILL BE READY TO SHIP SEPTEMBER 9TH 2022- GET IN LINE NOW!

The all new D185PKR Kohler powered portable air compressor is noticeably different from any other portable compressor in the Sullivan-Palatek product lineup. The 185 CFM/100 psi unit features a durable but lightweight composite clamshell canopy design for access to all routine serviceable components, such as the spin-on oil filter and separator. Compact in design, the unit is also equipped with a foldable drawbar to minimize its overall footprint in shipping and storage.

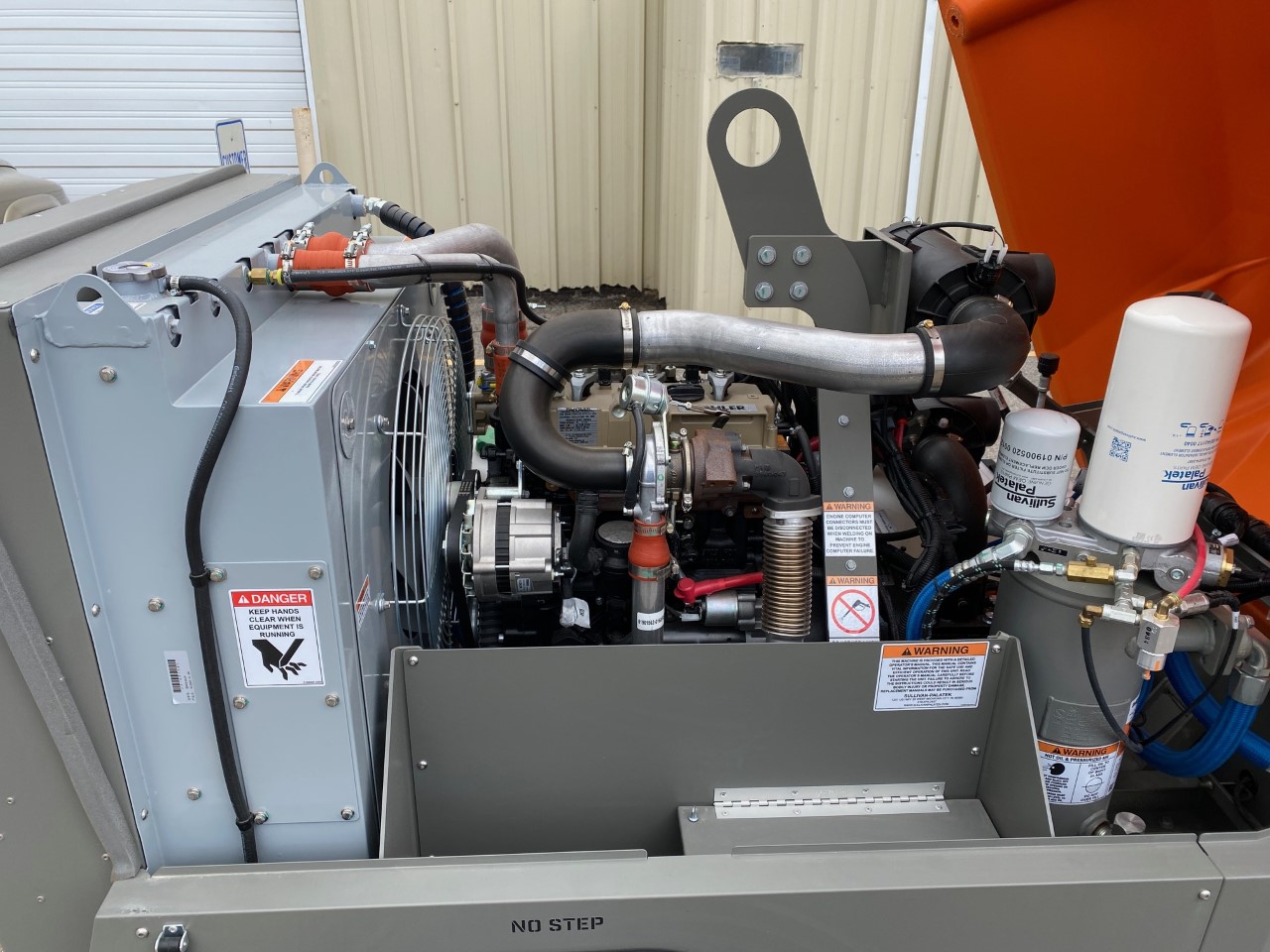

Internally the D185PKR is powered by a 48.8 hp Tier 4 Final Kohler engine and boasts a Sullivan-Palatek factory made 108 mm rotary screw air end at its core. The compressor also features side by side coolers for the compressor and engine, a large curbside toolbox for storage, a 10-hour full shift 30-gallon composite fuel tank with fuel level visibility, and a state-of-the-art curbside controller.

Model D185PKR
Rated Delivery: 185 CFM (5.2 m ³/min)
Rated Operating Pressure: 100 psig (6.9 Bar)
Operating Pressure Range: 70-125 psig (4.9 – 8.6 Bar)

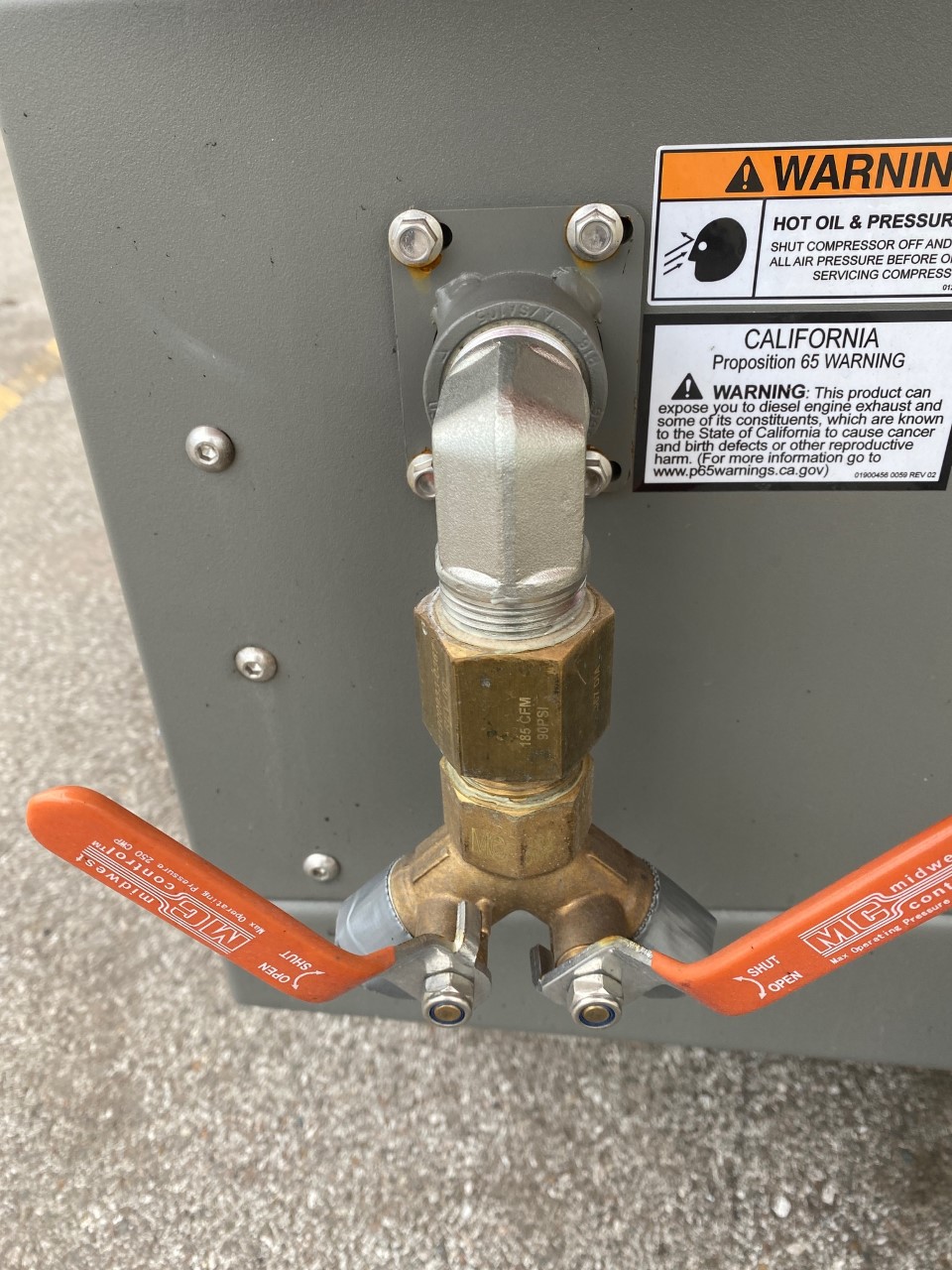

Air Discharge Outlet Size: 3/4” NPT
Air Discharge Outlet Quantity: 2
Estimated Weight, Serviced: 2200 lbs. (997 kg)
Dimensions L x W x H in” (mm): 126.5 x 63.5 x 63 (3213 x 1612 x 1600)
Engine: Kohler D1903 Tier 4 Final
Idle Speed: 1650 RPM
Fuel Tank Capacity 30 gal (113.5 L)
Horsepower @ rated RPM: 48.8 @ 2600 RPM
Full Load Speed: 2400 RPM

Your Price:
$25,000.00

All Major Credit Cards Accepted

Available on backorder

Quantity:
Share Product:
  • Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
  • All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
Weight 2200 lbs
Horsepower

49
PSI Configuration

100
Tank Size

30

Model D185PKR
Rated Delivery: 185 CFM (5.2 m ³/min)
Rated Operating Pressure: 100 psig (6.9 Bar)
Operating Pressure Range: 70-125 psig (4.9 – 8.6 Bar)
Air Discharge Outlet Size: 3/4” NPT
Air Discharge Outlet Quantity: 2
Estimated Weight, Serviced: 2200 lbs. (997 kg)
Dimensions L x W x H in” (mm): 126.5 x 63.5 x 63 (3213 x 1612 x 1600)
Engine: Kohler D1903 Tier 4 Final
Idle Speed: 1650 RPM
Fuel Tank Capacity 30 gal (113.5 L)
Horsepower @ rated RPM: 48.8 @ 2600 RPM
Full Load Speed: 2400 RPM

FEATURES:
COMPRESSOR
» Sullivan-Palatek factory designed and manufactured 108mm Diameter twin screw Air End
» Three year unlimited hour Air End warranty
» Automatic 0 to 100% capacity control
» Automatic shutdown and protection system
» Automatic blowdown valve
» Unloaded starting
» Spin on oil filter/separator
» Two Stage dry type air filter
» Multiple service connections
» Oil level sight gauge

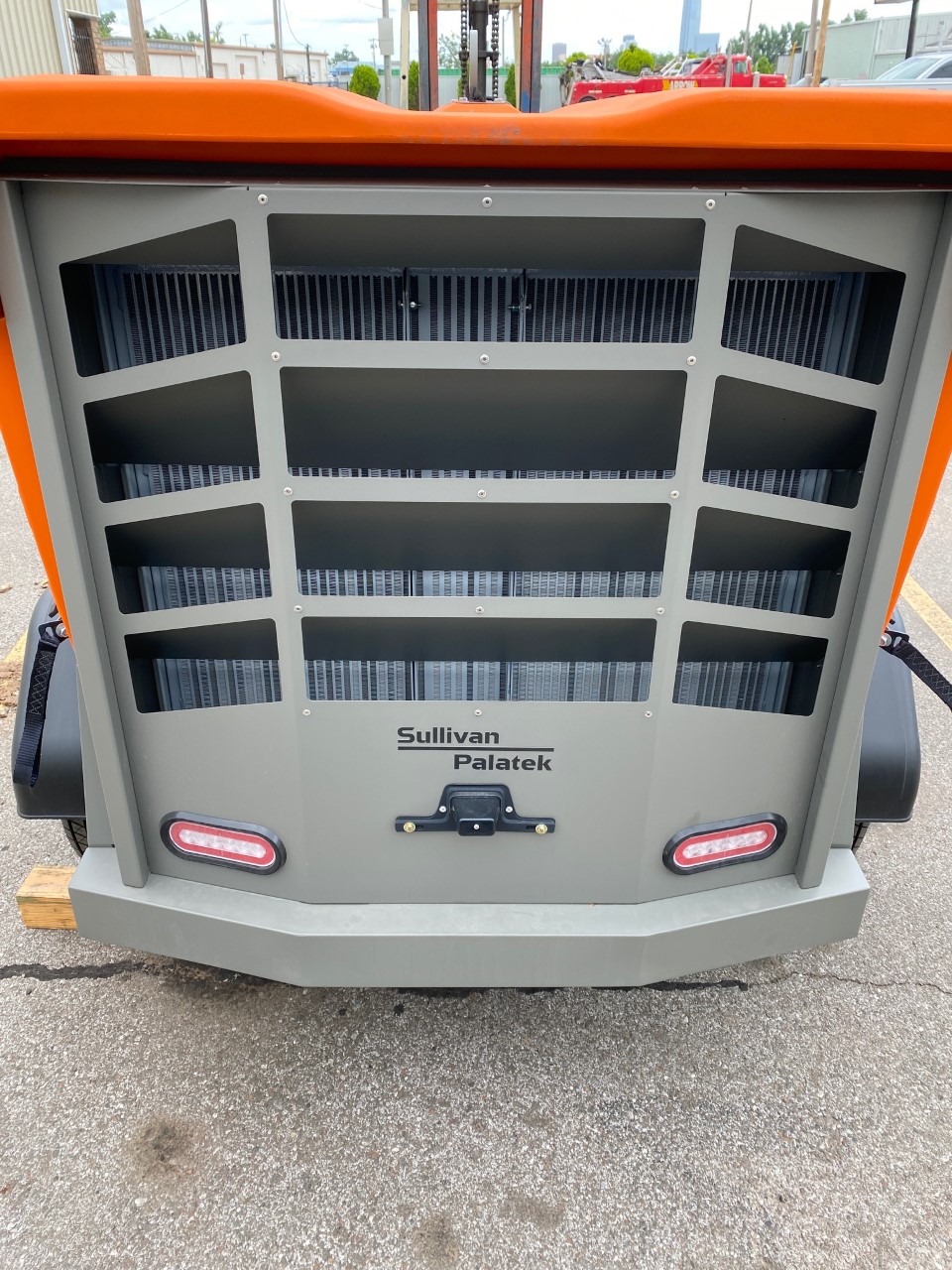

» Side by side coolers for compressor and engine
» Cooler cleanout access for cleaning
» Large curbside toolbox for storage
» Composite fuel tank with fuel level visibility
» Full shift (10 hour shift) 30 gallon fuel tank
» 2.3 Gal per hour

EXTERIOR
» Composite clam shell canopy design
» Safety chains for towing
» 13” Wheels

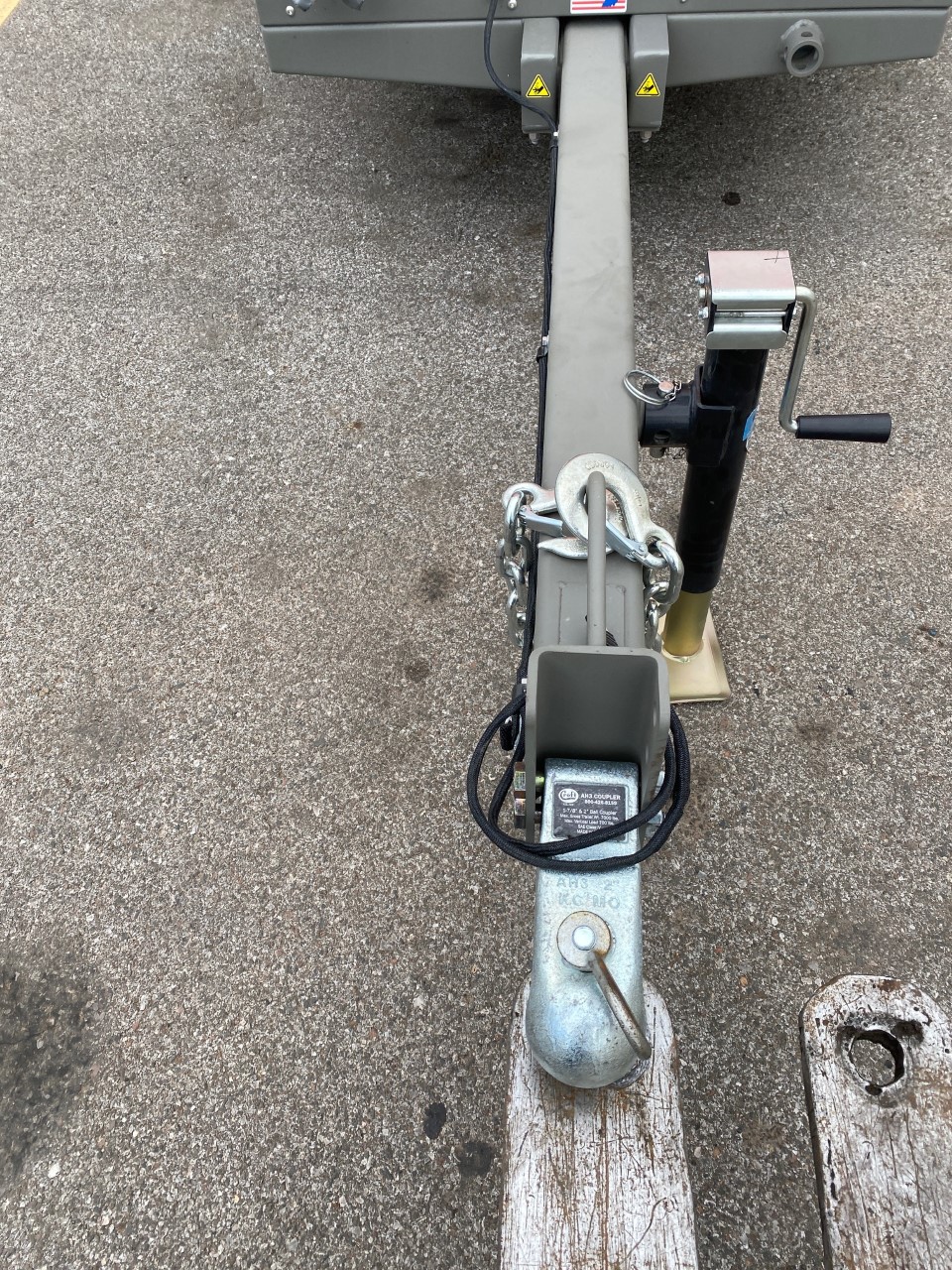

» Choice of lunnette eye or ball hitch on a foldable drawbar
» LED Tail Lights

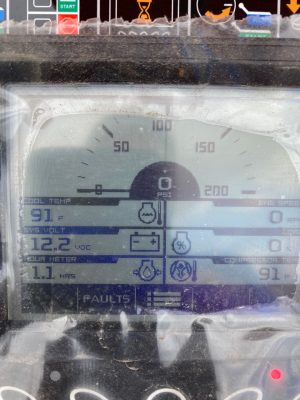

CONTROLLER
Sullivan-Palatek Electronic
Controller (SPEC)
Digital Readouts:
» Compressor temperature
» Engine oil pressure
» System Pressure
» Engine Load
» Engine temperature
» Voltmeter
» Tachometer
» Complete engine diagnostic tool
» Unit converter
» Multilingual capabilities

Weight 2200 lbs
Horsepower

49
PSI Configuration

100
Tank Size

30

Model D185PKR
Rated Delivery: 185 CFM (5.2 m ³/min)
Rated Operating Pressure: 100 psig (6.9 Bar)
Operating Pressure Range: 70-125 psig (4.9 – 8.6 Bar)
Air Discharge Outlet Size: 3/4” NPT
Air Discharge Outlet Quantity: 2
Estimated Weight, Serviced: 2200 lbs. (997 kg)
Dimensions L x W x H in” (mm): 126.5 x 63.5 x 63 (3213 x 1612 x 1600)
Engine: Kohler D1903 Tier 4 Final
Idle Speed: 1650 RPM
Fuel Tank Capacity 30 gal (113.5 L)
Horsepower @ rated RPM: 48.8 @ 2600 RPM
Full Load Speed: 2400 RPM

FEATURES:
COMPRESSOR
» Sullivan-Palatek factory designed and manufactured 108mm Diameter twin screw Air End
» Three year unlimited hour Air End warranty
» Automatic 0 to 100% capacity control
» Automatic shutdown and protection system
» Automatic blowdown valve
» Unloaded starting
» Spin on oil filter/separator
» Two Stage dry type air filter
» Multiple service connections
» Oil level sight gauge
» Side by side coolers for compressor and engine
» Cooler cleanout access for cleaning
» Large curbside toolbox for storage
» Composite fuel tank with fuel level visibility
» Full shift (10 hour shift) 30 gallon fuel tank
» 2.3 Gal per hour

EXTERIOR
» Composite clam shell canopy design
» Safety chains for towing
» 13” Wheels
» Choice of lunnette eye or ball hitch on a foldable drawbar
» LED Tail Lights

CONTROLLER
Sullivan-Palatek Electronic
Controller (SPEC)
Digital Readouts:
» Compressor temperature
» Engine oil pressure
» System Pressure
» Engine Load
» Engine temperature
» Voltmeter
» Tachometer
» Complete engine diagnostic tool
» Unit converter
» Multilingual capabilities
