FS-Curtis High Pressure Suction Valve Service Kit – FSK-C98HPSV

Categories: ,

FS-Curtis FSK-C98HPSV –High Pressure Suction Valve Service Kit for FS Curtis Pump C98

Freight Included!

Your Price:
$419.00

All Major Credit Cards Accepted
Quantity:
Share Product:
  • Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
  • All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
Weight 5 lbs
Dimensions 8 × 8 × 10 in

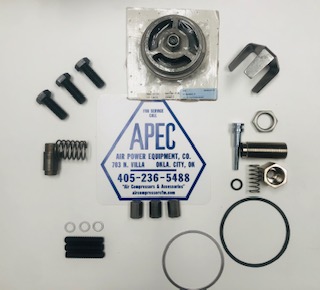

FS-Curtis FSK-C98HPSV –High Pressure Suction Valve Service Kit for FS Curtis Pump C98

HP SUCTION VALVE SERVICE KIT

(1) FCMA607-P      VALVE SUCTION ASSY

(1) FCDB1305        GASKET HIGH PRESSURE VALVE ALUMINUM

(3) FVH1232          WASHER 9/16 X 25/64 X 0.051 ALUMINUM

(1) FCM656           GASKET VALVE HIGH PRESS ORDER W/ CM657

(3) FVH12PL          SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN

(3) FVH08KN         SCREW HEX HD CUP PT 3/8-16 X 1-3/4 BL OX

(3) FRK2063           NUT STUD REPLACES RK29E

(1) FCBB921           BUFFER ASSY UNLOADER OVER TRAVEL

(1) FCA29948         SPRING UNLOADER FORK

(1) FCBB920            FORK UNLOADER HIGH PRESS SUCTION VALVE

(1) FCBB926            CYLINDER ASSY UNLOADER HP SUCTION VALVE





Weight 5 lbs
Dimensions 8 × 8 × 10 in

FS-Curtis FSK-C98HPSV –High Pressure Suction Valve Service Kit for FS Curtis Pump C98

HP SUCTION VALVE SERVICE KIT

(1) FCMA607-P      VALVE SUCTION ASSY

(1) FCDB1305        GASKET HIGH PRESSURE VALVE ALUMINUM

(3) FVH1232          WASHER 9/16 X 25/64 X 0.051 ALUMINUM

(1) FCM656           GASKET VALVE HIGH PRESS ORDER W/ CM657

(3) FVH12PL          SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN

(3) FVH08KN         SCREW HEX HD CUP PT 3/8-16 X 1-3/4 BL OX

(3) FRK2063           NUT STUD REPLACES RK29E

(1) FCBB921           BUFFER ASSY UNLOADER OVER TRAVEL

(1) FCA29948         SPRING UNLOADER FORK

(1) FCBB920            FORK UNLOADER HIGH PRESS SUCTION VALVE

(1) FCBB926            CYLINDER ASSY UNLOADER HP SUCTION VALVE
