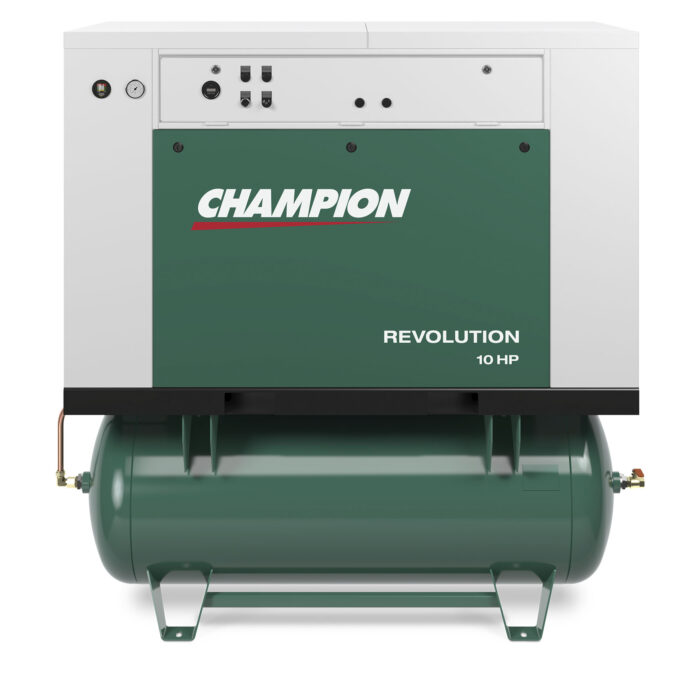

Champion HQR10-12 Revolution 10HP Tank Mounted Enclosed Reciprocating Air Compressor

Categories: ,

Free Freight!

The Champion Revolution Quiet Enclosed package is a state-of-the-art design allowing for greater airflow, lower approach temperatures, and improved sound levels than seen on previous package designs. With the ability to add an optional mounted refrigerated dryer to the package, Champion continues to pave the way for
innovative technology.

  • Rated at 33.5 CFM at 175 PSI, 175 PSI Max
  • 65 dBa
  • Disc Valves
  • 80/20 Duty Cycle
  • 120 Gallon Tank
  • Low Oil Stop Control
  • Aftercooler
  • 720 Pump RPM
  • USA Made
  • 1647 lbs.
  • L-93″   W-33″   H-71″



Contact for price!
Share Product:
  • Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
  • All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
Weight 1647 lbs
Dimensions 93 × 33 × 71 in
CFM

33 CFM at 175 PSI

Revolutionary Performance
Champion has always prided itself on providing the most innovative technology to the Compressed Air marketplace. There is no better example
of this than the state of the art, re-designed Quiet Enclosed Reciprocating compressor package we named the Revolution! The truly a revolutionary design of the Champion Revolution provides the advantages of a reciprocating compressor coupled with the low noise of a rotary screw. Ideal for areas with a low noise requirement, Revolution can be installed directly within the work environment close to the point-of-use, which eliminates the need for a dedicated room or an outside installation. This can save hundreds of feet in piping, resulting in reduced pressure drops—ultimately increasing your bottom line, and providing another reason why Champion is the clear choice in compressed air solutions.



Competitive Advantages & Customer Benefits
■ Integral cylinder and head eliminate the possibility of blown head gaskets for leak-free, trouble-free operation.
■ Balanced aluminum alloy first stage piston(s) are weight matched to the cast iron second-stage piston(s) for proper balance and minimized vibration. Unique domed piston design for maximum air delivery and efficiency.
■ Lightweight, high-density, die-cast aluminum alloy connecting rods for minimal reciprocating weight. Precision-bored crankpin bearing, and piston pin needle bearing are used to properly distribute bearing loads for longer bearing life than bushings.
■ Industrial grade, reliable, high-flow, low lift disc-type valves are made of corrosion resistant steel to ensure years of trouble-free operation.
■ Tapered roller-type main bearings, providing full contact and support of the crankshaft, ensuring compressor durability and long-life
