Weight | 880 lbs |
---|---|
Dimensions | 69 × 24.3 × 55.2 in |
Horsepower | 22.5 |
CFM | 44 CFM at 175 PSI |
PSI Configuration | 175 |
Tank Size | 80 |
Champion HGR13-8K 22.5HP Kohler Gas Powered 80-Gallon Tank Mounted with Electric Start
Free Freight!
- USA Made
- Disc Valves
- Rated at 44 CFM at 175 PSI, 175 PSI Max
- 22.5 HP Kohler CH680 Electric Start
- 80-Gallon A.S.M.E. Tank
- 940 Pump RPM
- 3-Year Pump Limited Warranty
- 3-Year Engine Warranty from Manufacturer
- 880 lbs
- L– 69’’ W– 26.1’’ H– 55.2’
Your Price:
$7,850.00
- Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
- All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
1.Engine
Comprehensive gas or diesel engine offering with sizes from 22.1–23.9 HP.
2. Flexible Oil Drain Hose
Clean services without messy oil spills.
3. Belt Tensioning System with Engine Slide Base
Provides easy service adjustments to the drive belt. The base plate also provides a sturdy platform to assist in vibration reduction.
4. High Mounted Pressure Gauge
Easy to read and reduces the risk of damage.
5. Simple Mounting Feet
One piece design for easy mounting.
6. Precise Throttle Control
Designed to provide accurate load control and easy starting.
7. 8 Gal. Fuel Tank
EPA-compliant fuel system with removable tray.
8. Top Plate Design
Extra clearance allows an abundant amount of room for hands and tools when servicing.
9. Pilot Unloader Valve
With a simple flip of the toggle valve, the package can be started with a fully pressurized tank.
10. Legendary Compressor Pumps
Utilizes the R-Series compressor pumps for the most dependable package in the industry
Standard Features:
■ Two-Stage Compressor Pump
■ Available in Splash Lubrication
■ ASME & CRN Certified 80 Gallon
Horizontal Air Receiver
– Manual Receiver Drain Valve
– Pressure Relief Valve
– Service Valve
– Pressure Gauge
– Includes Vibration Isolators
■ Belt Driven
■ Electric Start
■ Totally Enclosed Belt Guard
■ Oil Level Sight Glass
■ Reliable, High Flow Disc Valves
■ Intercooler for Cooling Between Stages
■ Precision Balanced Flywheel for Optimum Compressor Cooling
■ Gasketless Designed Integral Cylinder/Head
■ 3 Year Compressor Pump Warranty
■ Pumps Factory Filled with ChampLub Lubricants and are Tested at the Factory Prior to Shipment
■ Available with Preset Pressure Ratings

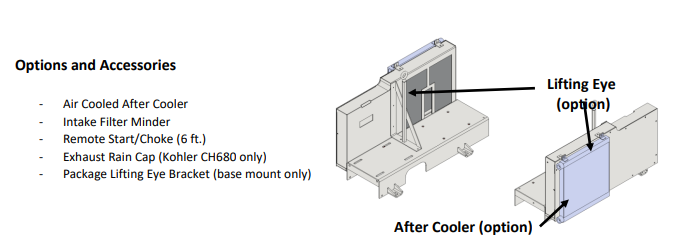

Options:
■ Air Cooled Aftercooler
■ Lifting Eye
■ Remote Start /Choke
