Weight | 460 lbs |
---|---|
Horsepower | 15 |
CFM | 53.7 CFM at 175 PSI |
Pump Material | Solid Cast Iron |
Pump Type | Two Stage |
PSI Configuration | 250 |
Oil Sight Glass | No |

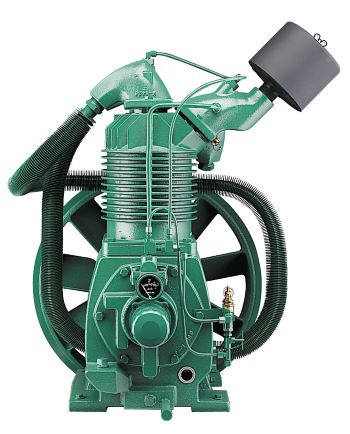

PL-40A Champion Pressure Lubricated Two-Stage Bare Pump (15HP)
Free Freight!
THIS PUMP WILL DROP SHIP FROM FACTORY IN PRINCETON, IL
USA Made, Disc Valves, 2 Cylinder
HP Range: 15 HP
Rated at: 53.7 CFM at 175 PSI, 250 PSI Max at 425-1000 Pump RPM
Pump Type: 2-Stage
L x W x H: 26 x 26 x 32
Warranty: 1-Year Limited
Weight: 460 lbs
Your Price:
$7,300.00
Available on backorder
- Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
- All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
The PL-Series compressor has been designed to operate in extreme duty applications. Because the PL-Series can operate up to 250 psi,and run in off-level operations, it is a true industrial use compressor.The PL-Series features domed pistons, integral cylinder head,disc valves, and an oil pump that provides lubricant to all crucial parts of the compressor. From its extra heavy duty design to its ease of maintenance, the Champion PL-Series exemplifies reliability, durability, and quality.
USA Made, Disc Valves, 2 Cylinder
HP Range: 15 HP
Rated at: 53.7 CFM at 175 PSI, 250 PSI Max at 425-1000 Pump RPM
Pump Type: 2-Stage
L x W x H: 26 x 26 x 32
Warranty: 1-Year Limited
Weight: 460 lbs
Pressure Lubrication- Crankshaft and connecting rod bearings are pressure lubricated for extended life.
Oil Pressure Gauge- Mounted on the front of the compressor for an excellent view and easy pressure monitoring.
Loadless Starting- Hydraulic unloader with factory set pilot valve provides easy, loadless starts and low oil pressure protection for unattended operation.
Lubricant Filtration- An external spin-on oil filter and an internal oil inlet screen protect internal components from damaging debris.
Babbitt Bearings- Replaceable bearing makes repairs easy and inexpensive.
Positive Displacement Oil Pump- Provides lubricant to all critical areas of the compressor pump that require lubrication.
Standard Features:
- Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor
- ASME inter-stage pressure relief valve for protection
- 10 Micron industrial grade intake filter
Weight | 460 lbs |
---|---|
Horsepower | 15 |
CFM | 53.7 CFM at 175 PSI |
Pump Material | Solid Cast Iron |
Pump Type | Two Stage |
PSI Configuration | 250 |
Oil Sight Glass | No |
The PL-Series compressor has been designed to operate in extreme duty applications. Because the PL-Series can operate up to 250 psi,and run in off-level operations, it is a true industrial use compressor.The PL-Series features domed pistons, integral cylinder head,disc valves, and an oil pump that provides lubricant to all crucial parts of the compressor. From its extra heavy duty design to its ease of maintenance, the Champion PL-Series exemplifies reliability, durability, and quality.
USA Made, Disc Valves, 2 Cylinder
HP Range: 15 HP
Rated at: 53.7 CFM at 175 PSI, 250 PSI Max at 425-1000 Pump RPM
Pump Type: 2-Stage
L x W x H: 26 x 26 x 32
Warranty: 1-Year Limited
Weight: 460 lbs
Pressure Lubrication- Crankshaft and connecting rod bearings are pressure lubricated for extended life.
Oil Pressure Gauge- Mounted on the front of the compressor for an excellent view and easy pressure monitoring.
Loadless Starting- Hydraulic unloader with factory set pilot valve provides easy, loadless starts and low oil pressure protection for unattended operation.
Lubricant Filtration- An external spin-on oil filter and an internal oil inlet screen protect internal components from damaging debris.
Babbitt Bearings- Replaceable bearing makes repairs easy and inexpensive.
Positive Displacement Oil Pump- Provides lubricant to all critical areas of the compressor pump that require lubrication.
Standard Features:
- Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor
- ASME inter-stage pressure relief valve for protection
- 10 Micron industrial grade intake filter
